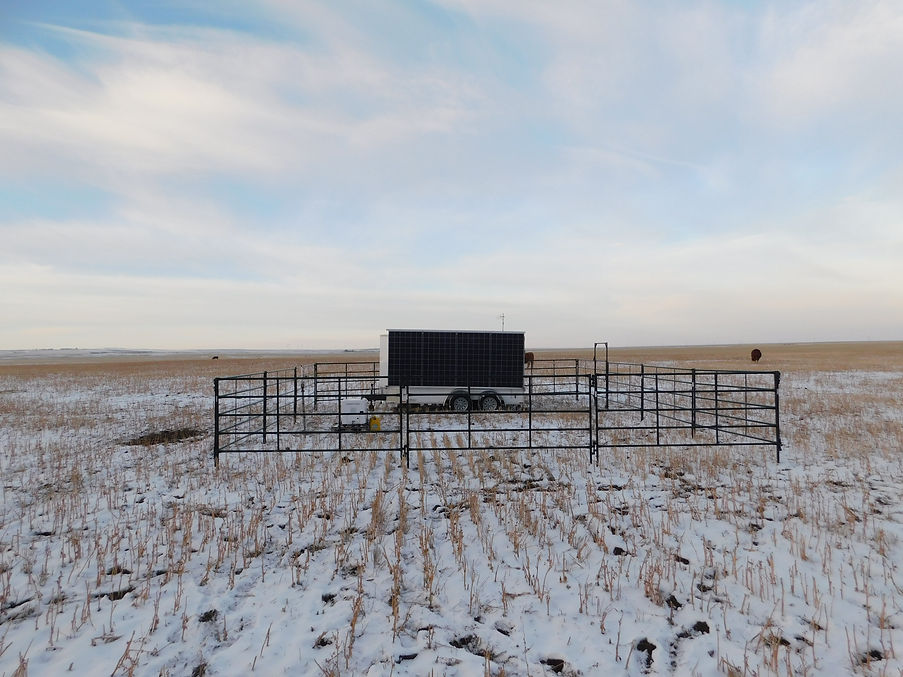

Windcube installation

LiDAR - Beam 6x by Lumibird


Remote Sensing Devices

Remote sensing devices (RSDs) such as the Beam6x by Lumibird are a quick method of determining the wind characteristics of a potential wind project site without the need for an on-site Meteorological tower. Using a Beam6x LiDAR, paired with a Sentrex Power Supply, reliable meteorological data can be acquired.

Which RSD should you choose?

   Some things to consider:

  • User friendly installation

  • Dimensions of measurement device

  • Maintenance schedule and requirements

  • Amount of measurable heights/data​


If you have a potential site and are unsure of which SoDAR or LiDAR would be best suited for your location, we can help!

Beam6x Windpower (1).png

Our Recomendation

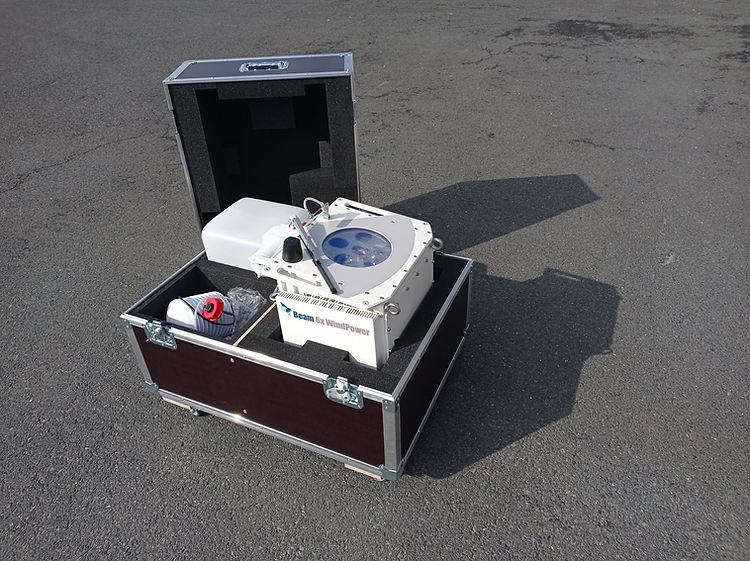

Shipping case 1 (1).jpg

BEAM 6x Wind power by Lumibird

Main Features

  • IEC classification pending by independent third party

  • True push-button installation and operation

  • Best data availability from 40 to 500 m

  • Up to 380 user selectable heights

  • Turbulence intensity : more accurate data thanks to 6x beam setup

  • Best stand-alone operation (low consumption, high temperature range, low weight, large data storage)

  • Light and compact (backpack size)

  • High reliability with Lumibird laser inside

Beam6x Windpower (1).png

The new Beam6x Windpower is a true push-button LiDAR dedicated to wind energy applications (site assessment, wind turbine power curves, wind turbine optimisation,…).

It’s the most powerful (up to 500m range and excellent data availability) and compact LiDAR on the market, thanks to Lumibird’s laser design and Halo Photonics’ data processing algorithm.

Its six-beam configuration – one laser switched sequentially on the five oblique beams and the vertical beam – and adjustable number of gates (up to 380) provide comprehensive information on wind profile and turbulence intensity over the full rotor height.

Technical Specifications

  • 5 inclined beams at 30 ° and 1 vertical beam

  • 40 to 500 m measurement range

  • 1 Hz data sampling rate

  • Up to 380 range gates

  • Wind speed range of 0 to 76 m/s

  • Speed accuracy <0.1 m/s

  • Speed uncertainty

    • < 3 % between 45 m and 50 m

    • < 2 % for altitudes higher than 50 m

  • Wind direction range 0-360 °

  • Direction accuracy 2 Â°

  • ​Operating temperature -40 to +50 °C

  • Operating humidity 0 to 95%

  • Inclined surface, window heater and wiper

  • Dimensions 492 mm x 438mm x 400 mm

  • Weight <30 kg

  • Standard power consumption 50W

  • Extreme condition power consumption < 155W

  • Direct input power supply 24 +/- 0.5 VDC

  • IP66 housing classification


Our Related Services

  • Exclusive distrubitor for the Beam6x in Canada

  • Installation, Re-location, Maintenance, Troubleshooting, and Decommissioning

  • Validation using our IEC Compliant 203m Meteorological Tower

  • Campaign Management Services include:

    • Data monitoring​

    • Communications managing

    • Historical records

    • Monthly or quarterly Status reports

  • Customized PV Remote Power Supply Trailer with Fuel Cell or Diesel Backup system

Contact us for Quotes/Pricing or Rental Options
